VMO 5020 V

Custom-made naviceiver for VW vehicles. With integrated 3D high-definition navigation system and TMC traffic warning function as standard.

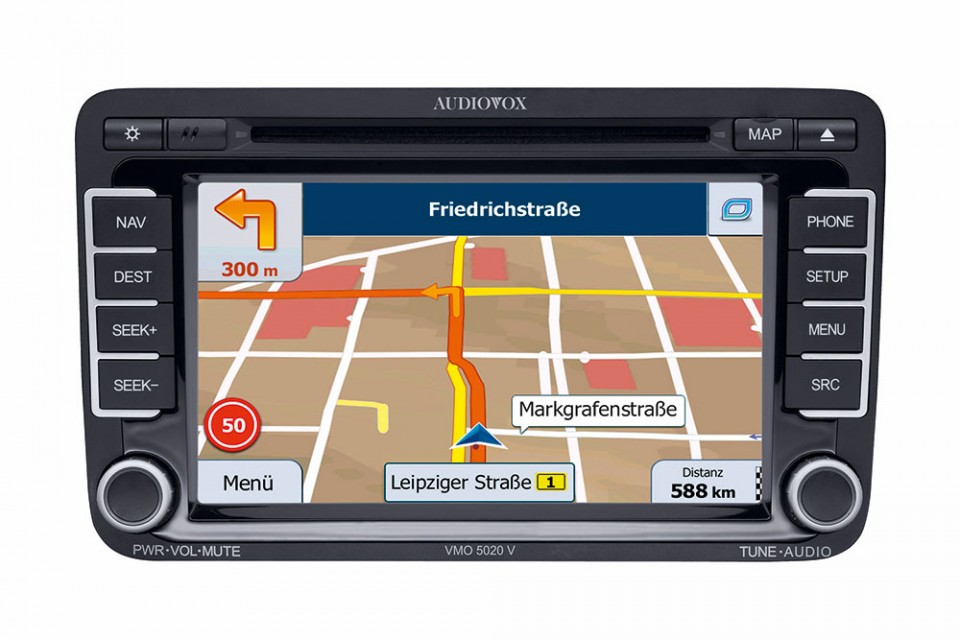

VMO 5020 V - 2-DIN Naviceiver with 7 inch LCD touchscreen for VW vehicles

Product information

The high-definition 17.8 cm LCD screen of the VMO 5020 V enables you to keep track of even complicated navigation manoeuvres without any difficulty. In addition to ensuring uniform brightness across the entire screen regardless of the angle of vision, the LED backlight also ensures excellent contrast for a fantastic movie experience when using the video playback function of the flexible multimedia DVD/CD player. A maximum output of 180 watts together with a 9-band equalizer guarantees outstanding audio accompaniment.

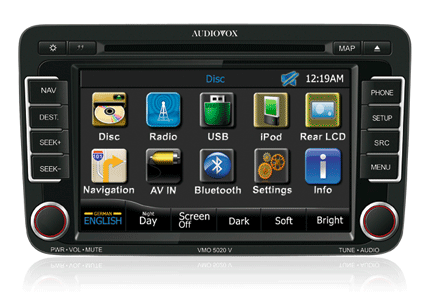

The touchscreen, which can be specially calibrated for optimum responsiveness, makes the operation of the on-screen display in German or English very easy indeed. To make sure that navigation is equally effortless and uncomplicated, the VMO 5020 V is equipped with the iGo Primo 2 3D high-definition navigation system and includes maps for 44 European countries. The 3D display of a large number of points of reference, buildings and landmarks provides a more realistic view of the surroundings, making navigation much easier.

Stable and reliable signal connection with the mobile phone is ensured by the Parrot Bluetooth hands-free unit with a separate microphone. Apart from practical features like the automatic return call function when the vehicle ignition is turned off, the new Parrot Bluetooth module can also be used to play back audio files from a smartphone via the car system. The VMO 5020 V does, of course, also accept MP3 files from a USB stick and is compatible with iPod and iPhone devices.

The Naviceiver is particularly convenient for using a rear view camera. The unit switches to the camera video input signal automatically to make complicated manoeuvring easier. The integrated CAN bus adapter reads, displays and manages all of the relevant vehicle data relating to the Climatronic system, parking sensors, lighting control and steering wheel controls.


Compatible with selected VW vehicles
DVD I CD I DivX I Xvid I MP3 I JPEG-Player
Hands-free set with integrated and separate microphone.
Connect the device to the front or rear USB-connector.
Filter to optimize the sound frequencies (bass/midrange/treble)
Control for Audiovox headunit via the steering wheel remote.
Integrated CAN bus adapter for Climatronic system, parking sensors, lighting control & steering wheel controls
High Definition touch screen TFT-Monitor with LCD-Display.
USB-connector at front or/and back.
LED Backlight illumination for the monitor.
Max. output: e.g. 180 W
Navigation system with TMC and description in 3D or 2D.
Video input for rear view camera.

Test review

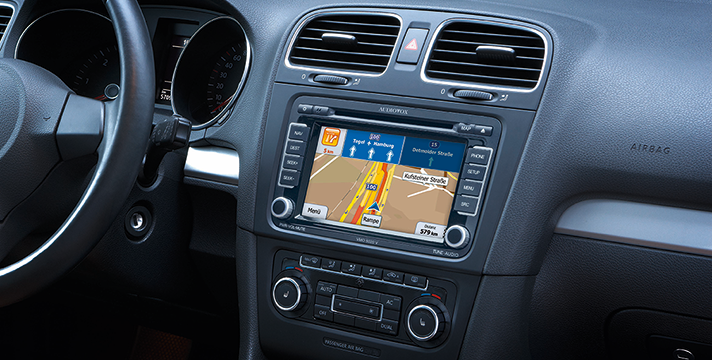

Compatible with the following VW cars

  • VW Golf V / VI >2006
  • VW Jetta > 2006
  • VW Passat > 2009
  • VW Eos > 2007
  • VW Passat CC >2006
  • VW Tiguan > 2008
  • VW Touran > 2010
  • VW Amarock >2010
  • VW Scirocco >2008
  • VW Sharan >2010
  • VW Caddy > 2003
  • Skoda Octavia > 2008  (Depending on the configuration/model it may be necessary to addinionally mount an original Skoda installation panel. This panel is not included and must be purchased separately.)
  • Skoda Superb > 2008
  • Skoda Yeti > 2009

Power Sound & Navigation

Power Sound

Power Rating
  • Total output power: 180 watts, output power: 4 x 45 watts


9-band equalizer


  • 9-band sound adjustment with 3 preset equalizer curves, 3 custom equalizer curves
4.1 Audio
  • 5 line audio outputs: 2x front, 2x rear and subwoofer (2 V / 100 ohms)
Subwoofer Control
  • Sub X-over frequencies 80 / 120 / 160 Hz, adjustable subwoofer volume

3D Navigation

3D high-definition navigation system iGo Primo 2 with TMC

NavigationMenuNoExit_W CockpitScreen_W

After launching the navigation menu you will be provided with the following options:

  • 'Destination', which allows you to enter an address or a point of interest
  • 'My Route', which allows you to call up the parameters of the route
  • 'Show Map', which allows you to start navigation via the map or
  • 'More', which allows you to adjust the settings of the navigation software.
Maps for 44 European countries
ProgramLanguage_W CockpitScreen3FieldsNoRoute_W
Text-to-speech navigation guidance
  • 15 text-to-speech languages
  • Announcement of street names for route guidance
Navigating to a point of interest

1. Open the navigation menu, tap 'Destination' and select 'Search POI'. You will then be presented with the following predefined search categories:

  • PARKING: At the destination
  • RESTAURANTS: En route
  • ACCOMMODATION: At the destination


Alternatively, you can also enter a custom search and access the 5,5 million points of interest/POIs stored on the VMO 5020 V.


2. Tap 'Custom Search' and then 'Near Destination'; a list of categories relating to the various points of interest will be displayed. Select 'Leisure' for example. You can browse through all of the categories by selecting 'List all POIs' or you can refine your search, for example, by selecting 'Parks and Recreational Facilities'.


3. The entries in the list specify the location and details relating to the POI. Tap 'Next'


4. The VMO 5020 V calls up the parameters of the route; a map of the entire route now appears and you can start the navigation process by selecting 'Go'.


Technical Features


  • OSD in German and Englisch
  • Windows 6.0 CE real-time operating system with user-optimized graphical interface
  • Vehicle specific BUS/CAN connection
  • Steering wheel control (SWC)
  • Vehicle specific light detection (auto key illumination (red))
  • Displays temperature climatronic
  • Displays optical parking system (PDC)
  • Rear-view camera ready with „Instant-On“ technology

Multimedia DVD/CD player

  • Compatible disc media: DVD ± R/RW (single and dual layer), CD-R/RW
  • Compatible media formats: MPEG1/2, Xvid, VCD, SVCD, DVD, AVI, MP3, WMA
  • CD text compatible
  • S/N ratio: >95 dBA
  • Dynamic range:>95 dB
  • Frequency response: 20 Hz – 20 kHz, 3 dB
  • Channel separation: > 60 dB bei 1 kHz
  • Aspect ratio: 16:9 or 4:3


  • Output power: 4 x 45 Watt
  • Total output power: 180 Watt
  • Nine-Band Equalizer with three preset and three user-defined EQ curves
  • 5 line audio outputs: 2x front, 2x rear, 1x subwoofer (2 V RMS / 200 Ohm)
  • Sub crossover frequencies: 80/120/160 Hz
  • Audio playback (MP3 files) via USB flash drive up to 32 GB
  • Rear audio/video auxiliary input (composite/stereo RCA)
  • Format: PAL/NTSC (auto-detection)
  • Video input for rearview camera
  • Composite video output for rear LCD screen
  • S/N ratio: 70 dBA at reference value (reference value: 1 watt, 4 ohms)
  • Frequency response: 20 Hz – 20 kHz, 3 dB (AUX input as reference input)

Parrot Bluetooth hands-free profile

  • Hands-free profile with external microphone
  • Call automatically transferred to handset when vehicle is turned off
  • Independent volume control
  • Built-in Parrot CK 5050 NEW Bluetooth
  • Audio Streaming (A2DP)

GPS Navigation System

  • 3D high definition navigation system with iGo Primo 2 and TMC, independent volume control
  • Premium POI set with 5.5 millionen POIs
  • TTS (Text to Speech) function
  • Map update on www.naviextras.com
  • Latest map guarantee
  • Navigation dual mode
  • SiRF Prima CPU GRF31+, 600 MHz
  • 4 GB Micro SD card

Maps for 44 European countries

  • Western European countries: Andorra, Austria, Belgium, Denmark, Finland, France, Germany, Gibraltar, Republic of Ireland, Italy, Liechtenstein, Luxemburg, Malta, Monaco, Netherlands, Norway, Portugal, San Marino, Spain, Sweden, Switzerland, Great Britain, Vatican City
  • Eastern European countries:Albania, Belarus, Bosnia and Herzegovina, Bulgaria, Croatia, Czech Republic, Estonia, Greece, Hungary, Latvia, Lithuania, Macedonia, Moldova, Montenegro, Poland, Romania, Serbia, Slovakia, Slovenia, Turkey, Ukraine
  • Map update on www.naviextras.com

15 TTS languages (Text to Speech)

  • Danish, Dutch, English (UK), English (US), Finnish, French, German, Greek, Italian, Norwegian, Polish, Portuguese, Spanish, Swedish, Turkish

3D map

  • 3D view: buildings, landmarks, terrain




  • Resolution: 1,152,000 sub pixels, 800 x 3 (B) x 480 (H)
  • LCD screen brightness adjustment: Dark, Soft, Bright or Screen Off
  • Night mode with illuminated buttons, brightness adjustable
  • Automatic dimmer
  • Touch screen calibration
