VME 9125 NAV

2-DIN naviceiver with an unbeatable price/performance ratio. Highlights include the integrated HD navigation system with TMC functionality and the powerful sound package.

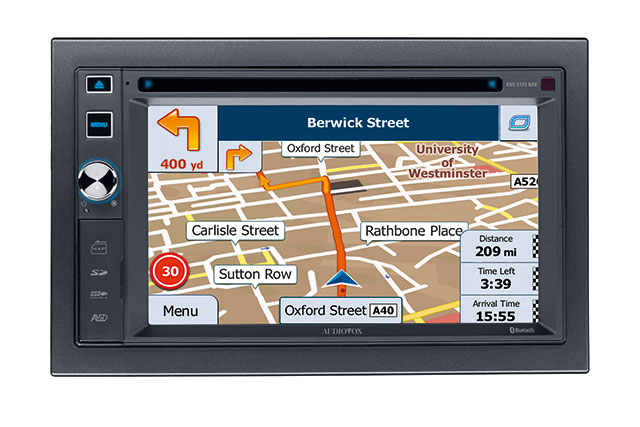

VME 9125 NAV - 2-DIN Naviceiver with 6.2 inch LCD touchscreen and LED backlight

Product information

The flexible VME 9125 NAV ensures that you're always on the right road. The Naviceiver has a 16 cm TFT monitor and LED backlight. Thanks to the sensitive touchscreen, the operation of the on-screen display is intuitive and convenient. The LED backlight ensures good contrast and bright illumination of the 6.2 inch screen at all times. Both the navigation view and, in particular, the video playback with the flexible multimedia DVD/CD player benefit from the high image quality.

For the audio sound in the car, the VME 9125 NAV provides a maximum output of 160 watts as well as dedicated subwoofer control. The device can be adjusted individually and precisely with a 10-band equalizer and a user-defined EQ curve.

The Naviceiver is extremely flexible with regard to connection options and connectivity. A mini-USB, 3.5 mm jack and SD card reader are located on the front of the unit. The mobile phone is connected via Bluetooth to the MTK Bluetooth hands-free kit with an internal microphone, also making audio streaming possible. The video signal of the rear view camera with automatic switchover can also be fed in. It is even possible to connect an additional monitor to the composite video output on the back.

Navigation is carried out by the high-definition navigation system iGo Primo 2 with TMC; maps for 44 countries are available immediately.

There is also an option for the VME 9125 NAV to be operated via the steering wheel. The SWC connector* required for this is already available.

*SWC READY - We recommend SWC adapter Dietz (PDF)


LED Backlight illumination for the monitor.
High Definition touch screen TFT-Monitor with LCD-Display.
DVD I CD I DivX I Xvid I MP3 I JPEG-Player
Navigation system with TMC and description in 2D
Max. output: e.g. 160 W
Card reader for SD memory card.
Control for the volume and frequency adjustment.
Control for Audiovox headunit via the steering wheel remote.
Video input for rear view camera.
Filter to optimize the sound frequencies (bass/midrange/treble)
Hands-free set with integrated microphone.
Mini-USB-connector at front or/and back.

Test review

Power Sound & Navigation

Power Sound

Power Rating
  • Total output power: 160 watts, output power: 4 x 40 watts


10-band equalizer
  • 10-band sound adjustment with 6 preset equalizer curves (Optimal/Classic/Rock /Jazz/Techno/Pop), 1 custom equalizer curve


4.1 Audio
  • 5 line audio outputs: 2x front, 2x rear and subwoofer (2 V / 100 ohms)
Subwoofer Control
  • Sub X-over frequencies 80 / 120 / 160 Hz, adjustable subwoofer volume


High-definition navigation system iGo Primo 2 with TMC

NavigationMenuNoExit_W Cockpitcommands_W

After launching the navigation menu you will be provided with the following options:

  • 'Destination', which allows you to enter an address or a point of interest
  • 'My Route', which allows you to call up the parameters of the route
  • 'Show Map', which allows you to start navigation via the map or
  • 'More', which allows you to adjust the settings of the navigation software.
Maps for 44 European countries
ProgramLanguage_W Cockpitcommands_W
Text-to-speech navigation guidance
  • 15 text-to-speech languages
  • Announcement of street names for route guidance
Navigating to a point of interest


1. Open the navigation menu, tap 'Destination' and select 'Search POI'. You will then be presented with the following predefined search categories:

  • PARKING: At the destination
  • RESTAURANTS: En route
  • ACCOMMODATION: At the destination


Alternatively, you can also enter a custom search and access the 400,000 points of interest/POIs stored on the VME 9125 NAV.


2. Tap 'Custom Search' and then 'Near Destination'; a list of categories relating to the various points of interest will be displayed. Select 'Leisure' for example. You can browse through all of the categories by selecting 'List all POIs' or you can refine your search, for example, by selecting 'Parks and Recreational Facilities'.


3. The entries in the list specify the location and details relating to the POI. Tap 'Next'


4. The VME 9125 NAV calls up the parameters of the route; a map of the entire route now appears and you can start the navigation process by selecting 'Go'.


Technical Features

  • 16 cm/6.2 digital TFT monitor with LCD touchscreen and LED Backlight
  • Multimedia DVD/CD/MPEG4/Xvid/MP3 Player
  • High de nition navigation system iGo Primo 2 with TMC
  • Map material for 44 European countries (Map update on www.naviextras.com)
  • 15 TTS voices (Text to Speech)
  • MTK Bluetooth hands-free pro le via internal and separate microphone and Audio Streaming (A2DP/AVRCP)
  • FM/AM tuner with RDS functions (AF (Alternative Frequencies), CT (Clock Time), EON (Enhanced Other Networks), PS (Program Service), PTY (Program Types), RT (Radio Text), TA (Traf c Announcement), TP (Traf c Program)
  • Ten-Band Equalizer with 6 preset + 1 user-de ned EQ curves
  • Subwoofer Control
  • Composite Video output at the rear side for connection of an additional monitor
  • Media inputs (Mini USB /3.5 mm A/V connector) on the front side
  • SD card slot at the front side
  • 5 Line Audio outputs
  • Video input for Rear Camera mode (normal & mirror image), automatic switch-on of Rear Camera mode
  • Power output 4 x 40 watts / total: 160 watts
  • Freely programmable SWC adapter, connection by optional adapter
  • Display with 4x dimmer and Auto Blackout function
  • Windows 6.0 CE real-time operating system with intuitive graphical interface
